602 Paragon ULTRA Base Tech Data
Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Paragon® ULTRA Base/Ply is our hot asphalt applied, modified asphalt sheet for low-slope commercial roofing applications.
Paragon® ULTRA Base/Ply is a modified asphalt sheet that can be used as either a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Paragon® ULTRA Base/Ply is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof sheet membrane.
Paragon® ULTRA Base/Ply is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.
Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.
Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
602 Paragon® ULTRA Base/Ply
|
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 90 mils | ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333 | Up to 30 years | Listed in various fire assemblies |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 55 mils | ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved | Up to 30 years | Yes | |
Torch | Polymer Modified (Rubberized) Asphalt | Exceptional | 100 mils | ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved | Up to 30 years | Yes | |
Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 55 mils | ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed | Up to 20 years | ASTM E108 Class A, B, & C |
602 Paragon® ULTRA Base/Ply
|
||||
---|---|---|---|---|
Application Method |
Hot Asphalt |
Hot Asphalt |
Torch |
Mechanically Fastened |
Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Tear Strength |
Enhanced |
Enhanced |
Exceptional |
Enhanced |
Thickness |
90 mils |
55 mils |
100 mils |
55 mils |
Testing Compliance |
ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333 |
ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved |
ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved |
ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed |
Warranties |
Up to 30 years |
Up to 30 years |
Up to 30 years |
Up to 20 years |
Fire Resistance (FR) |
Listed in various fire assemblies |
Yes |
Yes |
ASTM E108 Class A, B, & C |
SKU: 602

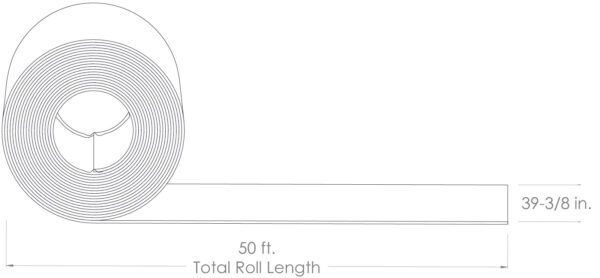

L: 50′
W: 39-3/8″
SQ/Roll: 1.5
Thickness: 90 mils nominal
ASTM D6163 Type I, Grade S
ASTM D4601 Type II
FM Approved
Intertek CCRR-0333
SQ/Roll: 1.5
Rolls/Pallet: 20
Rolls/Truckload: 500
602 Paragon ULTRA Base Tech Data
Multi-Ply Systems Booklet
OmniSeal & Paragon Base Sheets Safety Data Sheet
Paragon Flyer
Product Data Guide
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 602 Paragon® ULTRA Base include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
Compare Products
Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
602 Paragon® ULTRA Base/Ply
|
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 90 mils | ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333 | Up to 30 years | Listed in various fire assemblies |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 55 mils | ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved | Up to 30 years | Yes | |
Torch | Polymer Modified (Rubberized) Asphalt | Exceptional | 100 mils | ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved | Up to 30 years | Yes | |
Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 55 mils | ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed | Up to 20 years | ASTM E108 Class A, B, & C |
602 Paragon® ULTRA Base/Ply
|
||||
---|---|---|---|---|
Application Method |
Hot Asphalt |
Hot Asphalt |
Torch |
Mechanically Fastened |
Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Tear Strength |
Enhanced |
Enhanced |
Exceptional |
Enhanced |
Thickness |
90 mils |
55 mils |
100 mils |
55 mils |
Testing Compliance |
ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333 |
ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved |
ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved |
ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed |
Warranties |
Up to 30 years |
Up to 30 years |
Up to 30 years |
Up to 20 years |
Fire Resistance (FR) |
Listed in various fire assemblies |
Yes |
Yes |
ASTM E108 Class A, B, & C |
Specifications & Testing
SKU: 602
L: 50′
W: 39-3/8″
SQ/Roll: 1.5
Thickness: 90 mils nominal
ASTM D6163 Type I, Grade S
ASTM D4601 Type II
FM Approved
Intertek CCRR-0333
SQ/Roll: 1.5
Rolls/Pallet: 20
Rolls/Truckload: 500
Documents & Resources
602 Paragon ULTRA Base Tech Data
Multi-Ply Systems Booklet
OmniSeal & Paragon Base Sheets Safety Data Sheet
Paragon Flyer
Product Data Guide
Warranty Information
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 602 Paragon® ULTRA Base include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
