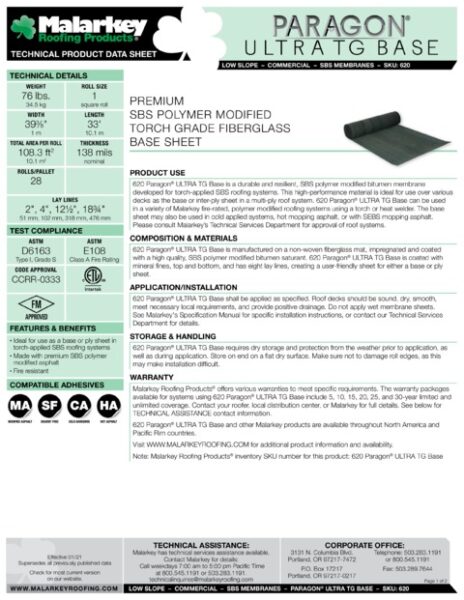

620 Paragon ULTRA TG Base Tech Data
Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Paragon® ULTRA TG Base/Ply is our torch applied, modified asphalt sheet for low-slope commercial roofing applications.
Paragon® ULTRA TG Base/Ply is a modified asphalt sheet that can be used as either a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Paragon® ULTRA TG Base/Ply is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof sheet membrane.
Torch applied asphalt roofing is a proven process that requires a hot torch to liquify and adhere asphalt sheets into a uniform, monolithic watertight roofing membrane. It is deal for building envelopes where workspace is limited and the weather prohibits the use of self-adhered roofing.
Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.
Sheet is torch applied. Torch applied asphalt roofing is a proven process that requires a propane torch to liquify and adhere the asphalt sheets into a uniform, monolithic watertight roofing membrane. Torch Grade roofs are designed for all climates, expanding and contracting without melting or cracking.
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Application Method | Asphalt Technology | Thickness | Tear Strength | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
620 Paragon® ULTRA TG Base/Ply
|
Torch | Polymer Modified (Rubberized) Asphalt | 100 mils | Exceptional | ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved | Up to 30 years | Yes |
Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | 55 mils | Enhanced | ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed | Up to 20 years | ASTM E108 Class A, B, & C | |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | 90 mils | Enhanced | ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333 | Up to 30 years | Listed in various fire assemblies | |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | 55 mils | Enhanced | ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved | Up to 30 years | Yes |
620 Paragon® ULTRA TG Base/Ply
|
||||
---|---|---|---|---|
Application Method |
Torch |
Mechanically Fastened |
Hot Asphalt |
Hot Asphalt |
Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Thickness |
100 mils |
55 mils |
90 mils |
55 mils |
Tear Strength |
Exceptional |
Enhanced |
Enhanced |
Enhanced |
Testing Compliance |
ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved |
ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed |
ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333 |
ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved |
Warranties |
Up to 30 years |
Up to 20 years |
Up to 30 years |
Up to 30 years |
Fire Resistance (FR) |
Yes |
ASTM E108 Class A, B, & C |
Listed in various fire assemblies |
Yes |
SKU: 620

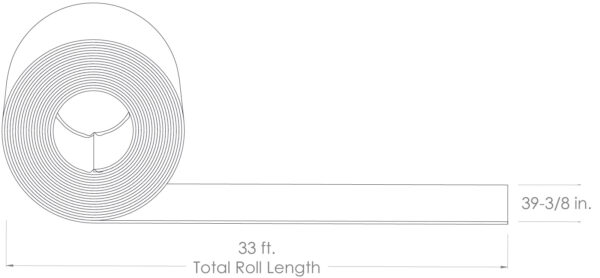

L: 33′
W: 39-3/8″
SQ/Roll: 1
Thickness: 138 mils nominal
ASTM D6163 Type I, Grade S
ASTM E108 Class A
Intertek CCRR-0333
FM Approved
SQ/Roll: 1
Rolls/Pallet: 28
Rolls/Truckload: 616
620 Paragon ULTRA TG Base Tech Data
Multi-Ply Systems Booklet
OmniSeal & Paragon Base Sheets Safety Data Sheet
Paragon Flyer
Product Data Guide
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 620 Paragon® ULTRA TG Base include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
