500 Pano™ Type 4 Ply Sheet

Hot Asphalt Applied, Conventional Ply Sheet

Reinforced with fiberglass, Pano™ Type 4 Ply is our conventional, hot asphalt applied sheet for low-slope commercial roofing applications.

System Optionality

Pano™ Type 4 Ply is a conventional sheet that can be used with a base sheet or cap sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.

Fiberglass Reinforcement

Pano™ Type 4 Ply is constructed with our conventional, reinforced with fiberglass, to create a strong and durable waterproof sheet membrane.

Hot Asphalt Application

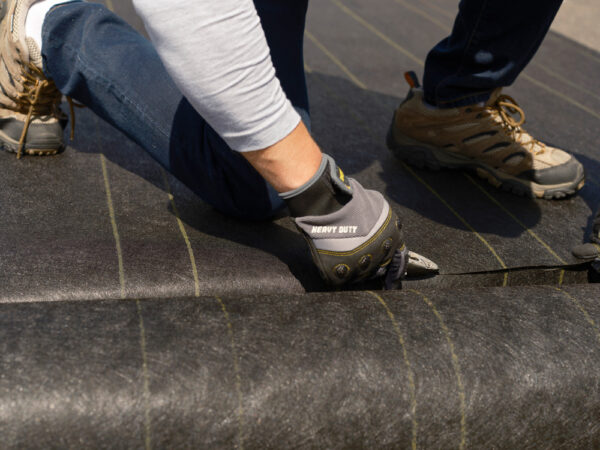

Pano™ Type 4 Ply is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.

Key Features

Conventional Asphalt

Made with conventional roofing asphalt for time-tested durability and performance.

Hot Asphalt

Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.

Multi-ply System

Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.

Strong & Durable

Conventional asphalt sheets combine with other sheets to create multi-layer strength and redundancy for dependable, durable protection. Up to 255 mils thick in a 3-ply system, 6X thicker than common single-ply roofing systems.

Waterproof System

Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.

Fire Resistance (FR)

Class A fire rated in a system assembly over a combustible or non-combustible deck.

Product Details

  Application Method Asphalt Technology Tear Strength Thickness Testing Compliance Warranties Fire Resistance (FR)
500 Pano™ Type 4 Ply Sheet
Hot Asphalt Conventional Exceptional 30 mils ASTM D2178 Type IV; ASTM E108 Class A; UL 55A Type G1; Intertek CCRR-0333; FM Approved; UL and Intertek Listed Up to 20 years ASTM E108 Class A
Self-Adhered Polymer Modified (Rubberized) Asphalt Enhanced 70 mils ASTM D1970; ASTM D4601; ASTM E108 Class A, B, & C; FM Approved; UL & Intertek Listed up to 20 years ASTM E108 Class A, B, & C
Hot Asphalt Polymer Modified (Rubberized) Asphalt Enhanced 55 mils ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved Up to 30 years Yes
Torch Polymer Modified (Rubberized) Asphalt Exceptional 100 mils ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved Up to 30 years Yes

Application Method

Hot Asphalt

Self-Adhered

Hot Asphalt

Torch

Asphalt Technology

Conventional

Polymer Modified (Rubberized) Asphalt

Polymer Modified (Rubberized) Asphalt

Polymer Modified (Rubberized) Asphalt

Tear Strength

Exceptional

Enhanced

Enhanced

Exceptional

Thickness

30 mils

70 mils

55 mils

100 mils

Testing Compliance

ASTM D2178 Type IV; ASTM E108 Class A; UL 55A Type G1; Intertek CCRR-0333; FM Approved; UL and Intertek Listed

ASTM D1970; ASTM D4601; ASTM E108 Class A, B, & C; FM Approved; UL & Intertek Listed

ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved

ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved

Warranties

Up to 20 years

up to 20 years

Up to 30 years

Up to 30 years

Fire Resistance (FR)

ASTM E108 Class A

ASTM E108 Class A, B, & C

Yes

Yes

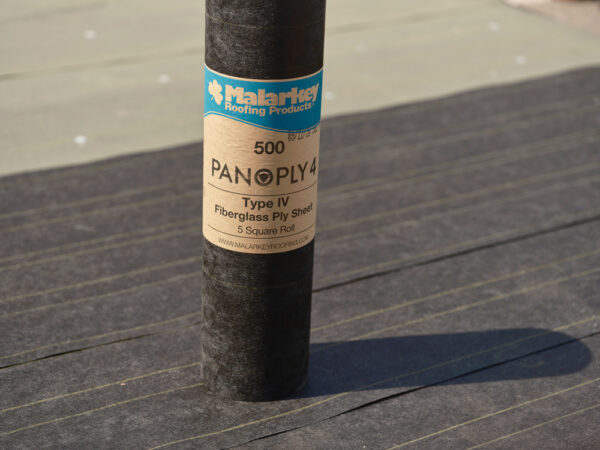

500 Pano Ply 4

Malarkey Roofing Products Roll Roofing

500 Pano Ply 4 Label

Malarkey Roofing Products Roll Roofing

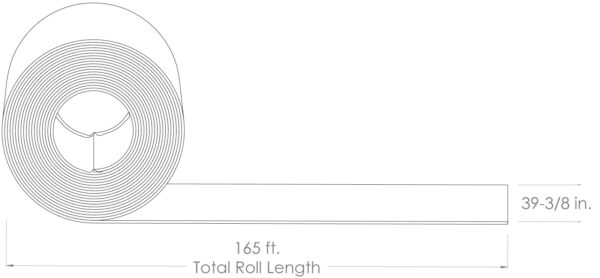

Technical Specs

SKU: 500
L: 165′
W: 39-3/8″
SQ/Roll: 5
Thickness: 30 mils nominal



Testing Compliance

ASTM D2178 Type IV
ASTM E108 Class A
UL 55A Type G1
Intertek CCRR-0333
FM Approved
UL and Intertek Listed


Shipping Specifications

SQ/Roll: 5
Rolls/Pallet: 30
Rolls/Truckload: 1200

PDF Documents

Warranty

Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 500 Pano™ Ply 4 include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
