630 Paragon® ULTRA TG Cap
Torch Applied, Modified Cap Sheet
Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Paragon® ULTRA TG Cap Sheet is our torch applied, modified asphalt sheet for low-slope commercial roofing applications.
System Optionality
Paragon® ULTRA TG Cap is a modified asphalt sheet that can be used with a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Modified Asphalt Performance
Paragon® ULTRA TG Cap is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof sheet membrane.
Torch Applied

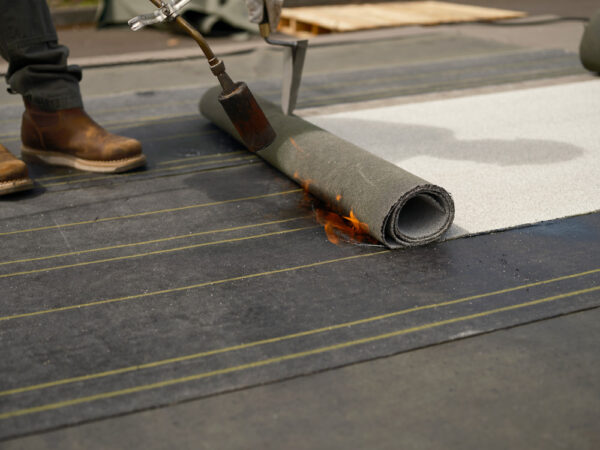

Torch applied asphalt roofing is a proven process that requires a hot torch to liquify and adhere asphalt sheets into a uniform, monolithic watertight roofing membrane. It is deal for building envelopes where workspace is limited and the weather prohibits the use of self-adhered roofing.
Key Features
Modified Asphalt
Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.
Torch Applied (TG)
Sheet is torch applied. Torch applied asphalt roofing is a proven process that requires a propane torch to liquify and adhere the asphalt sheets into a uniform, monolithic watertight roofing membrane. Torch Grade roofs are designed for all climates, expanding and contracting without melting or cracking.
Multi-ply System
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Strong & Durable
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.
Waterproof System
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Fire Resistance (FR)
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Product Details
| Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
|---|---|---|---|---|---|---|---|
|
630 Paragon® ULTRA TG Cap
|
Torch | Polymer Modified (Rubberized) Asphalt | Exceptional | 150 mils | ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved | Up to 30 years | Yes |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 115 mils | ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class B & C | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class A & B | |
| Torch Applied | Polymer Modified (Rubberized) Asphalt | Exceptional | 140 mils | ASTM D6163 Type I, Grade G; ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; FM Approved; CRRC Rated; Intertek Listed | Up to 30 years | ASTM E108 Class A |
|
630 Paragon® ULTRA TG Cap
|
||||
|---|---|---|---|---|
| Application Method |
Torch |
Self-Adhered |
Self-Adhered |
Torch Applied |
| Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
| Tear Strength |
Exceptional |
Enhanced |
Enhanced |
Exceptional |
| Thickness |
150 mils |
115 mils |
125 mils |
140 mils |
| Testing Compliance |
ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved |
ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed |
ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed |
ASTM D6163 Type I, Grade G; ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; FM Approved; CRRC Rated; Intertek Listed |
| Warranties |
Up to 30 years |
Up to 20 years |
Up to 20 years |
Up to 30 years |
| Fire Resistance (FR) |
Yes |
ASTM E108 Class B & C |
ASTM E108 Class A & B |
ASTM E108 Class A |
630 Paragon ULTRA TG Cap
630 Paragon ULTRA TG Cap Label

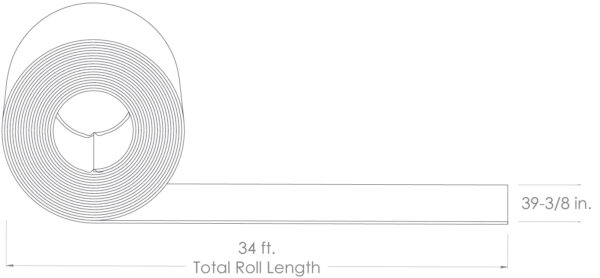

Technical Specs
SKU: 630
L: 34′
W: 39-3/8″
SQ/Roll: 1
Thickness: 150 mils nominal
Testing Compliance
ASTM D6163 Type I, Grade G
ASTM E108 Class A
Intertek CCRR-0333
Intertek Listed
FM Approved
Shipping Specifications
SQ/Roll: 1
Rolls/Pallet: 20
Rolls/Truckload: 440
PDF Documents
630 Paragon ULTRA TG Cap Tech Data
Multi-Ply Systems Booklet
Paragon Flyer
Product Data Guide
Warranty
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 630 Paragon® ULTRA TG Cap include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
