500 Pano Ply 4 & 506 Pano Ply 6 Safety Data Sheet

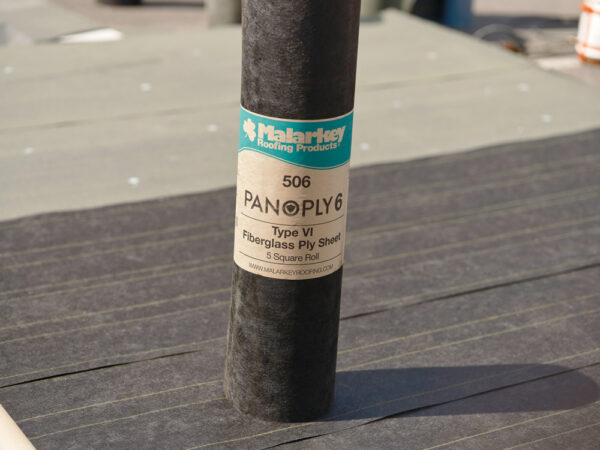

Reinforced with fiberglass, Pano™ Type 6 Ply is our conventional, hot asphalt applied sheet for low-slope commercial roofing applications.
Pano™ Type 6 Ply is a conventional sheet that can be used with a base sheet or cap sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Pano™ Type 6 Ply is constructed with our conventional, reinforced with fiberglass, to create a strong and durable waterproof sheet membrane.
Pano™ Type 6 Ply is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.
Made with conventional roofing asphalt for time-tested durability and performance.
Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Conventional asphalt sheets combine with other sheets to create multi-layer strength and redundancy for dependable, durable protection. Up to 255 mils thick in a 3-ply system, 6X thicker than common single-ply roofing systems.
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
506 Pano™ Type 6 Ply Sheet
|
Hot Asphalt | Conventional | Exceptional | 30 mils | ASTM D2178 Type VI; ASTM E108 Class A; UL 55A Type G1; Intertek CCRR-0333; FM Approved; UL and Intertek Listed | Up to 20 years | ASTM E108 Class A |
Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 70 mils | ASTM D1970; ASTM D4601; ASTM E108 Class A, B, & C; FM Approved; UL & Intertek Listed | up to 20 years | ASTM E108 Class A, B, & C | |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 55 mils | ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved | Up to 30 years | Yes | |
Torch | Polymer Modified (Rubberized) Asphalt | Exceptional | 100 mils | ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved | Up to 30 years | Yes |
506 Pano™ Type 6 Ply Sheet
|
||||
---|---|---|---|---|
Application Method |
Hot Asphalt |
Self-Adhered |
Hot Asphalt |
Torch |
Asphalt Technology |
Conventional |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Tear Strength |
Exceptional |
Enhanced |
Enhanced |
Exceptional |
Thickness |
30 mils |
70 mils |
55 mils |
100 mils |
Testing Compliance |
ASTM D2178 Type VI; ASTM E108 Class A; UL 55A Type G1; Intertek CCRR-0333; FM Approved; UL and Intertek Listed |
ASTM D1970; ASTM D4601; ASTM E108 Class A, B, & C; FM Approved; UL & Intertek Listed |
ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved |
ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved |
Warranties |
Up to 20 years |
up to 20 years |
Up to 30 years |
Up to 30 years |
Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class A, B, & C |
Yes |
Yes |
SKU: 506

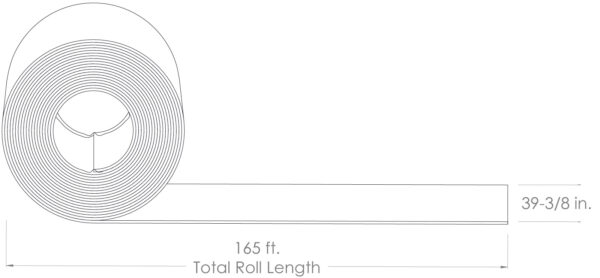

L: 165′
W: 39 3/8″
SQ/Roll: 5
Thickness: 30 mils nominal
ASTM D2178 Type VI
ASTM E108 Class A
UL 55A Type G1
Intertek CCRR-0333
FM Approved
UL and Intertek Listed
SQ/Roll: 5
Rolls/Pallet: 25
Rolls/Truckload: 950
500 Pano Ply 4 & 506 Pano Ply 6 Safety Data Sheet
506 Pano Ply 6 Tech Data
Multi-Ply Systems Booklet
Pano Flyer
Product Data Guide
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 506 Pano™ Ply 6 include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
