Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Omniseal® Cap FR is our premium, self-adhering, modified asphalt cap sheet for low-slope commercial roofing applications.
OmniSeal® Cap FR is a modified asphalt sheet that is used as a base sheet to create a 2-3 layer multi-ply system that meets desired performance, cost, and warranty needs.
OmniSeal® Cap FR is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof roof layer.
OmniSeal® Cap FR is a self-adhered membrane activated by direct sunlight, radiant heat, and applied pressure. Self-adhered roofing eliminates the use of torches and burning asphalt from the installation process.
Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.
Sheet is self-adhered (adhesive is activated by direct sunlight and radiant heat, and applied with pressure). Self-adhered roofing eliminates potentially dangerous fire hazards and unpleasant odors from the low slope roofing process.
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, modified asphalt delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 240 mils thick in a 3-ply system, 6X thicker than common single ply roofing systems.
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.

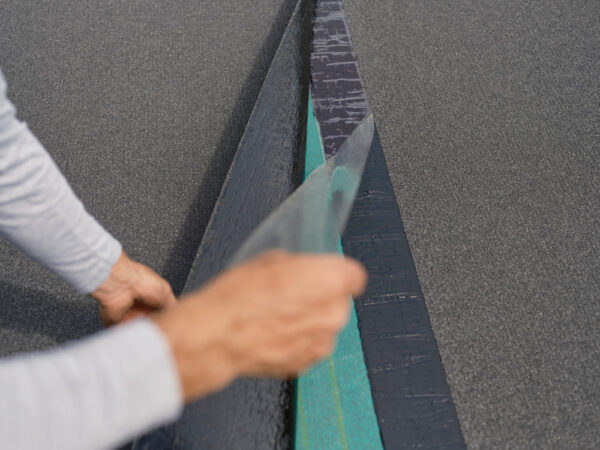

Self-adhered membranes have a factory-applied split-release film that protects the adhesive and is removed during installation.
Class 4 impact-rated when used as a system, the highest rating available from Underwriters Laboratory.
Enhanced warranties are available when product is used in a complete roofing system of Malarkey shingles and accessories, and installed by a Malarkey Certified Contractor.
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
436 OmniSeal® Cap FR
|
Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class A & B |
Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class B & C | |
Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 105 mils | ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed | Up to 30 years | ASTM E108 Class A | |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 120 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved | Up to 30 years | ASTM E108 Class A |
436 OmniSeal® Cap FR
|
||||
---|---|---|---|---|
Application Method |
Self-Adhered |
Self-Adhered |
Mechanically Fastened |
Hot Asphalt |
Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Tear Strength |
Enhanced |
Enhanced |
Enhanced |
Enhanced |
Thickness |
125 mils |
125 mils |
105 mils |
120 mils |
Testing Compliance |
ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed |
ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed |
ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved |
Warranties |
Up to 20 years |
Up to 20 years |
Up to 30 years |
Up to 30 years |
Fire Resistance (FR) |
ASTM E108 Class A & B |
ASTM E108 Class B & C |
ASTM E108 Class A |
ASTM E108 Class A |
SKU: 436

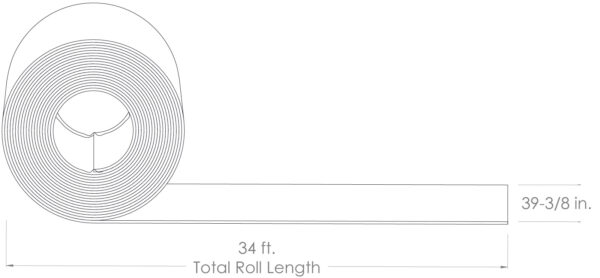

L: 34′
W: 39-3/8″
SQ/Roll: 1
Thickness: 125 mils nominal
ASTM D3909
ASTM D7530
ASTM D1970
ASTM D6163 Type I, Grade G
ASTM E108 Class A & B
UL 2218 Class 4
Intertek Listed
SQ/Roll: 1
Rolls/Pallet: 20
Rolls/Truckload: 540
436 OmniSeal Cap FR Safety Data Sheet
436 OmniSeal Cap FR Tech Data
Instrucciones de Instalación del Sistema de Techumbre OmniSeal (Español)
Instructions de Pose de Système OmniSeal pour Toiture (Francais)
Multi-Ply Systems Booklet
OmniSeal System Installation Guide
Product Data Guide
Secure Choice System Brochure
Malarkey Roofing Products® offers various warranties to meet specific requirements. Contact your roofer, local distribution center or Malarkey’s Technical Services Department for full details.
