Commercial

430 OmniSeal™ Cap

Self-Adhered, Modified Cap Sheet

Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Omniseal™ Cap is our premium, self-adhering, modified asphalt cap sheet for low-slope commercial roofing applications.

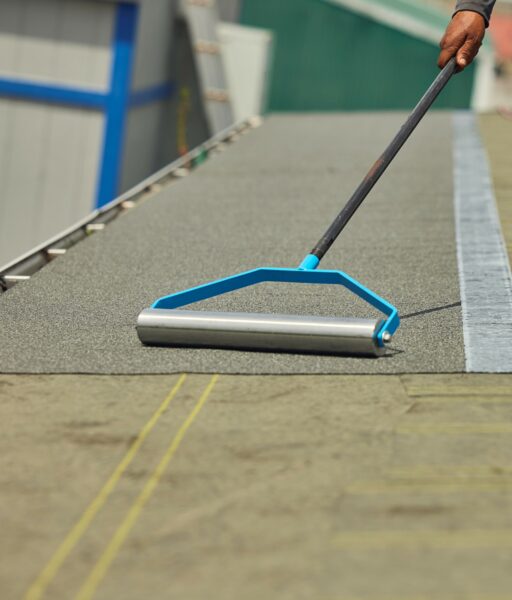

OmniSeal Self Adhered Roller

System Optionality

OmniSeal™ Cap is a modified asphalt sheet that is used as a base sheet to create a 2-3 layer multi-ply system that meets desired performance, cost, and warranty needs.

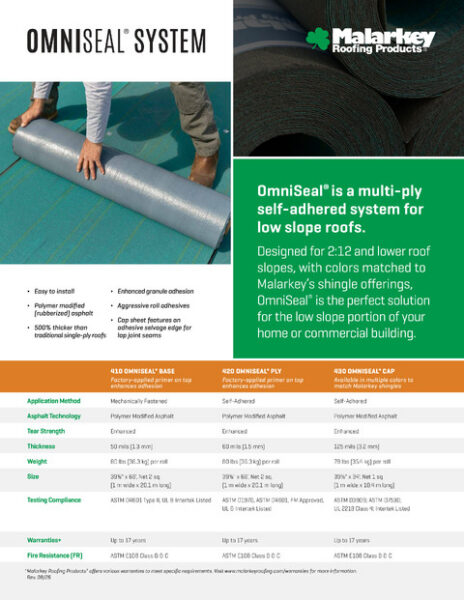

OmniSeal™ System

430 OmniSeal™ Cap Color Options

Showing products available near

Sorry, there are no 430 OmniSeal™ Cap colors available in the area. Please enter another location, or view shingles available in your area. Contact customer support for further assistance at (800) 545-1191

Modified Asphalt Performance

OmniSeal™ Cap is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof roof layer.



Omniseal 430

Self-Adhered Ease

OmniSeal™ Cap is a self-adhered membrane activated by direct sunlight, radiant heat, and applied pressure. Self-adhered roofing eliminates the use of torches and burning asphalt from the installation process.

Key Features

Modified Asphalt

Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.

Self-Adhered

Sheet is self-adhered (adhesive is activated by direct sunlight and radiant heat, and applied with pressure). Self-adhered roofing eliminates potentially dangerous fire hazards and unpleasant odors from the low slope roofing process.

Multi-ply System

Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.

Strong & Durable

Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, modified asphalt delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 240 mils thick in a 3-ply system, 6X thicker than common single ply roofing systems.

Waterproof System

Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.

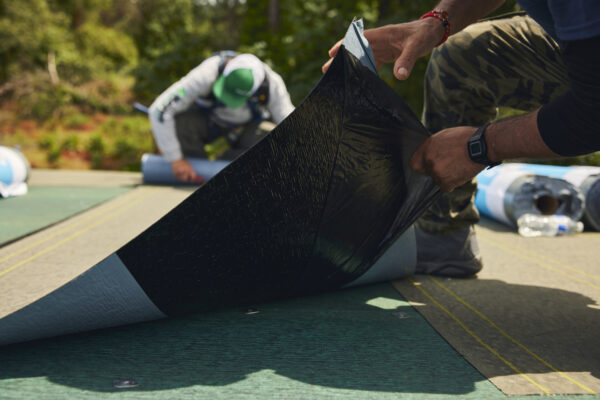

Faster Installation & Split Release

Self-adhered membranes have a factory-applied split-release film that protects the adhesive and is removed during installation.

Impact Resistant

Class 4 impact-rated when used as a system, the highest rating available from Underwriters Laboratory.

Enhanced Warranty

Enhanced warranties are available when product is used in a complete roofing system of Malarkey shingles and accessories, and installed by a Malarkey Certified Contractor.

Fire Resistance (FR)

Class B fire rated in a system assembly over a combustible or non-combustible deck.

Product Details

  Application Method Asphalt Technology Tear Strength Thickness Testing Compliance Warranties Fire Resistance (FR)
430 OmniSeal™ Cap
Self-Adhered Polymer Modified (Rubberized) Asphalt Enhanced 115 mils ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed Up to 20 years ASTM E108 Class B & C
Torch Polymer Modified (Rubberized) Asphalt Exceptional 150 mils ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved Up to 30 years Yes
Self-Adhered Polymer Modified (Rubberized) Asphalt Enhanced 125 mils ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed Up to 20 years ASTM E108 Class A & B
Hot Asphalt Applied Polymer Modified (Rubberized) Asphalt Exceptional 150 mils ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved Up to 30 years Yes

Application Method

Self-Adhered

Torch

Self-Adhered

Hot Asphalt Applied

Asphalt Technology

Polymer Modified (Rubberized) Asphalt

Polymer Modified (Rubberized) Asphalt

Polymer Modified (Rubberized) Asphalt

Polymer Modified (Rubberized) Asphalt

Tear Strength

Enhanced

Exceptional

Enhanced

Exceptional

Thickness

115 mils

150 mils

125 mils

150 mils

Testing Compliance

ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed

ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved

ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed

ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved

Warranties

Up to 20 years

Up to 30 years

Up to 20 years

Up to 30 years

Fire Resistance (FR)

ASTM E108 Class B & C

Yes

ASTM E108 Class A & B

Yes

430 OmniSeal Cap

Malarkey Roofing Products Roll Roofing

430 OmniSeal Cap Label

Malarkey Roofing Products Roll Roofing

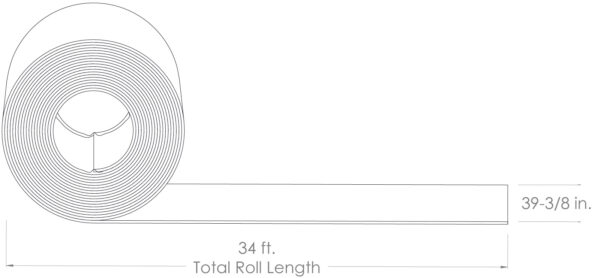

Technical Specs

SKU: 430
L: 34′
W: 39-3/8″
SQ/Roll: 1
Thickness: 115 mils nominal



Testing Compliance

ASTM D3909
ASTM D7530
ASTM E108 Class B & C
UL 2218 Class 4
Intertek Listed

Shipping Specifications

SQ/Roll: 1
Rolls/Pallet: 20
Rolls/Truckload: 600

PDF Documents

Videos

Warranty

Malarkey Roofing Products® offers various warranties to meet specific requirements. Contact your roofer, local distribution center or Malarkey’s Technical Services Department for full details.
