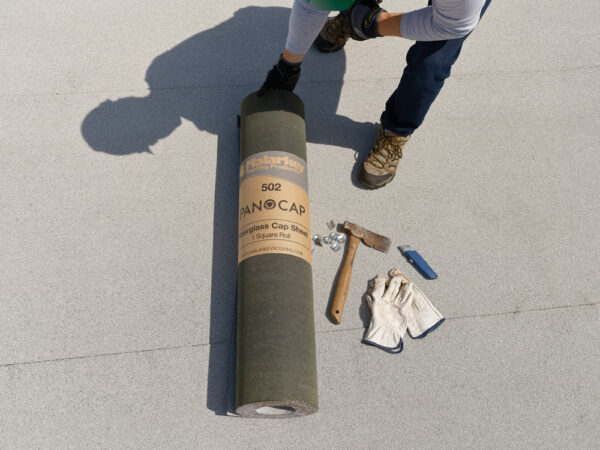

Reinforced with fiberglass, Pano™ Cap is our conventional, hot asphalt applied sheet for low-slope commercial roofing applications.
Pano™ Cap is a conventional sheet that can be used with a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.

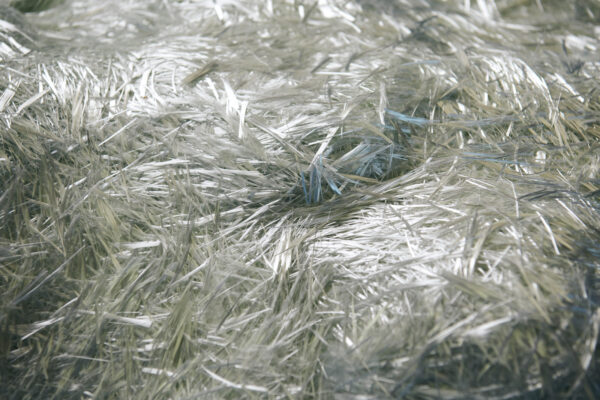

Pano™ Cap is constructed with our conventional, reinforced with fiberglass, to create a strong and durable waterproof sheet membrane.
Pano™ Cap is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.
Made with conventional roofing asphalt for time-tested durability and performance.
Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Conventional asphalt sheets combine with other sheets to create multi-layer strength and redundancy for dependable, durable protection. Up to 255 mils thick in a 3-ply system, 6X thicker than common single-ply roofing systems.
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
502 Pano™ Cap
|
Hot Asphalt | Conventional | Exceptional | 105 mils | ASTM D3909; ASTM E108 Class A; UL 55A Type G3; Intertek CCRR-0333; FM Approved; UL and Intertek Listed | Up to 20 years | ASTM E108 Class A |
Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class B & C | |
Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 105 mils | ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed | Up to 30 years | ASTM E108 Class A | |
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 120 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved | Up to 30 years | ASTM E108 Class A |
502 Pano™ Cap
|
||||
---|---|---|---|---|
Application Method |
Hot Asphalt |
Self-Adhered |
Mechanically Fastened |
Hot Asphalt |
Asphalt Technology |
Conventional |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Tear Strength |
Exceptional |
Enhanced |
Enhanced |
Enhanced |
Thickness |
105 mils |
125 mils |
105 mils |
120 mils |
Testing Compliance |
ASTM D3909; ASTM E108 Class A; UL 55A Type G3; Intertek CCRR-0333; FM Approved; UL and Intertek Listed |
ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed |
ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved |
Warranties |
Up to 20 years |
Up to 20 years |
Up to 30 years |
Up to 30 years |
Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class B & C |
ASTM E108 Class A |
ASTM E108 Class A |
SKU: 502

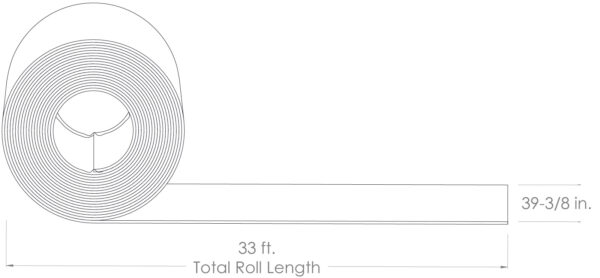

L: 33′
W: 39-3/8″
SQ/Roll: 1
Thickness: 105 mils nominal
ASTM D3909
ASTM E108 Class A
UL 55A Type G3
Intertek CCRR-0333
FM Approved
UL and Intertek Listed
SQ/Roll: 1
Rolls/Pallet: 30
Rolls/Truckload: 600

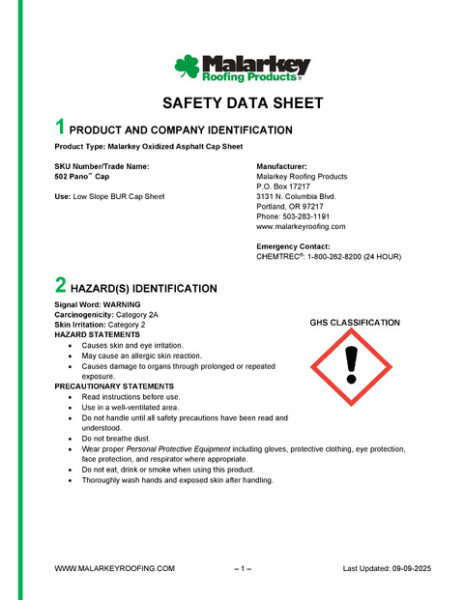

502 Pano Cap Safety Data Sheet

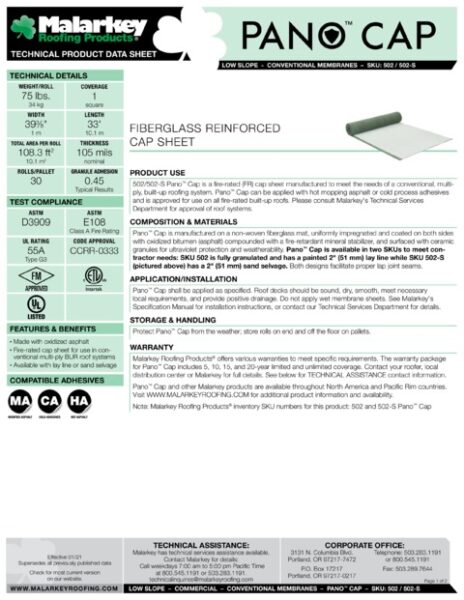

502 Pano Cap Tech Data
Multi-Ply Systems Booklet
Pano Flyer
Product Data Guide
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 502 Pano™ Cap include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
