610 Paragon ULTRA SA Base Tech Data
Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Paragon® ULTRA SA Base/Ply is our premium, self-adhering, modified asphalt sheet for low-slope commercial roofing applications.
Paragon® ULTRA SA Base/Ply is a modified asphalt sheet that can be used as either a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Paragon® ULTRA SA Base/Ply is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, ultra thick (9x thicker than conventional low slope sheets), and durable waterproof sheet membrane.

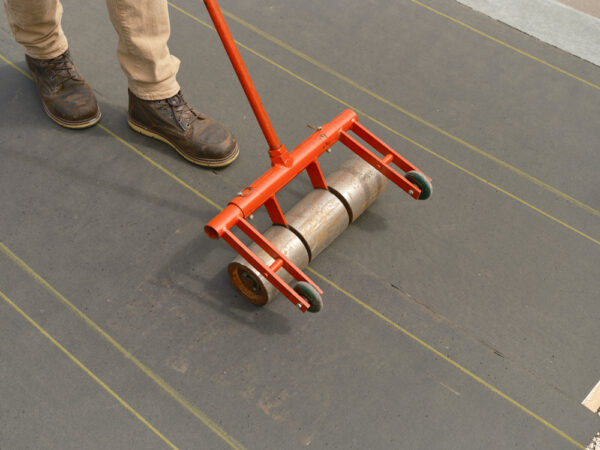

Paragon® ULTRA SA Base/Ply is a self-adhered membrane activated by direct sunlight, radiant heat, and applied pressure. Self-adhered roofing eliminates the use of torches and burning asphalt from the installation process.
Sheet is self-adhered (adhesive is activated by direct sunlight and radiant heat, and applied with pressure). Self-adhered roofing eliminates potentially dangerous fire hazards and unpleasant odors from the low slope roofing process.
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Among industry’s highest adhesion uplift rating for greater confidence sheet will remain securely in place after installation.
Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
---|---|---|---|---|---|---|---|
610 Paragon® ULTRA SA Base/Ply
|
Self-Adhered | Polymer Modified (Rubberized) Asphalt | Exceptional | 138 mils | ASTM D6163 Type I, Grade S; ASTM D1970; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved | Up to 30 years | Yes |
Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 70 mils | ASTM D1970; ASTM D4601; ASTM E108 Class A, B, & C; FM Approved; UL & Intertek Listed | up to 20 years | ASTM E108 Class A, B, & C |
610 Paragon® ULTRA SA Base/Ply
|
||
---|---|---|
Application Method |
Self-Adhered |
Self-Adhered |
Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Tear Strength |
Exceptional |
Enhanced |
Thickness |
138 mils |
70 mils |
Testing Compliance |
ASTM D6163 Type I, Grade S; ASTM D1970; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved |
ASTM D1970; ASTM D4601; ASTM E108 Class A, B, & C; FM Approved; UL & Intertek Listed |
Warranties |
Up to 30 years |
up to 20 years |
Fire Resistance (FR) |
Yes |
ASTM E108 Class A, B, & C |
SKU: 610

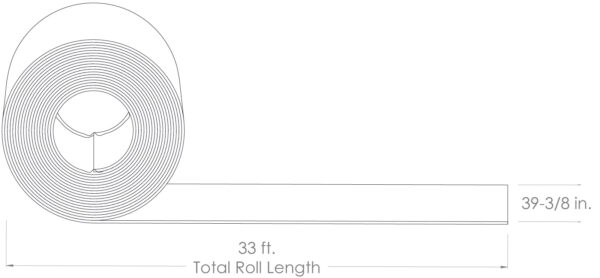

L: 33′
W: 39-3/8″
SQ/Roll: 1
Thickness: 138 mils nominal
ASTM D6163 Type I, Grade S
ASTM D1970
ASTM E108 Class A
Intertek CCRR-0333
UL & Intertek Listed
FM Approved
SQ/Roll: 1
Rolls/Pallet: 20
Rolls/Truckload: 540
610 Paragon ULTRA SA Base Tech Data
Multi-Ply Systems Booklet
OmniSeal & Paragon Base Sheets Safety Data Sheet
Product Data Guide
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 610 Paragon® ULTRA SA Base include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
