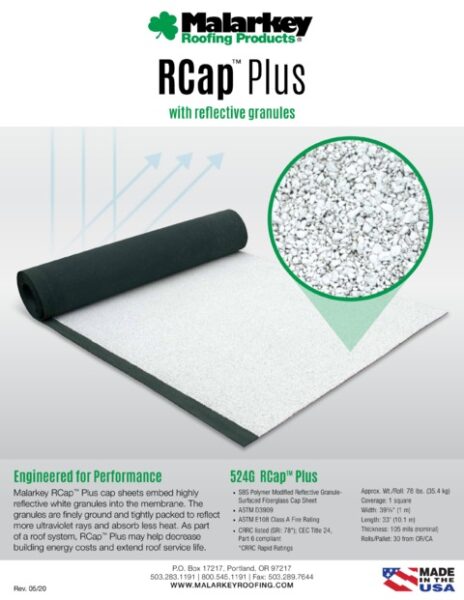

524G RCap Plus Flyer
Commercial
524G RCap® Plus
Hot Asphalt Applied, Modified Cap Sheet
Made with our industry-leading Polymer Modified (Rubberized) Asphalt, RCap® Plus is our hot asphalt applied cap sheet for low-slope commercial roofing applications. RCap® Plus features a highly solar reflective white granule surface.
System Optionality
RCap® Plus is a conventional sheet that can be used with a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Modified Asphalt Performance
RCap® Plus is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof sheet membrane.
Hot Asphalt Application
RCap® Plus is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.
Key Features
Modified Asphalt
Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.
Hot Asphalt
Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.
Multi-ply System
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Strong & Durable
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.
Waterproof System
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Fire Resistance (FR)
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Product Details
| Application Method | Asphalt Technology | Thickness | Testing Compliance | Tear Strength | Warranties | Fire Resistance (FR) | |
|---|---|---|---|---|---|---|---|
|
524G RCap® Plus
|
Hot Asphalt Applied | Polymer Modified (Rubberized) Asphalt | 105 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; CRRC Rated; Intertek Listed | Enhanced | Up to 30 years | ASTM E108 Class A |
| Torch Applied | Polymer Modified (Rubberized) Asphalt | 140 mils | ASTM D6163 Type I, Grade G; ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; FM Approved; CRRC Rated; Intertek Listed | Exceptional | Up to 30 years | ASTM E108 Class A | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | 125 mils | ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed | Enhanced | Up to 20 years | ASTM E108 Class A & B | |
| Hot Asphalt Applied | Polymer Modified (Rubberized) Asphalt | 150 mils | ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved | Exceptional | Up to 30 years | Yes |
|
524G RCap® Plus
|
||||
|---|---|---|---|---|
| Application Method |
Hot Asphalt Applied |
Torch Applied |
Self-Adhered |
Hot Asphalt Applied |
| Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
| Thickness |
105 mils |
140 mils |
125 mils |
150 mils |
| Testing Compliance |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; CRRC Rated; Intertek Listed |
ASTM D6163 Type I, Grade G; ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; FM Approved; CRRC Rated; Intertek Listed |
ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed |
ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved |
| Tear Strength |
Enhanced |
Exceptional |
Enhanced |
Exceptional |
| Warranties |
Up to 30 years |
Up to 30 years |
Up to 20 years |
Up to 30 years |
| Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class A |
ASTM E108 Class A & B |
Yes |
524G RCap Plus
524G RCap Plus Label

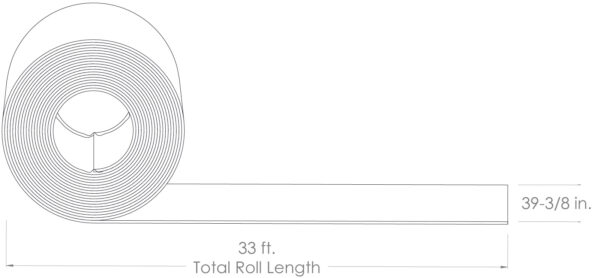

Technical Specs
SKU: 524G
L: 33′
W: 39-3/8″
SQ/Roll: 1
Thickness: 105 mils nominal
Testing Compliance
ASTM D3909
ASTM E108 Class A
Intertek CCRR-0333
CRRC Rated
Intertek Listed
Shipping Specifications
SQ/Roll: 1
Rolls/Pallet: 30
Rolls/Truckload: 600
PDF Documents
524G RCap Plus Safety Data Sheet
524G RCap Plus Tech Data
Multi-Ply Systems Booklet
Product Data Guide
Warranty
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 524G RCap® Plus include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
Compare Products
| Application Method | Asphalt Technology | Thickness | Testing Compliance | Tear Strength | Warranties | Fire Resistance (FR) | |
|---|---|---|---|---|---|---|---|
|
524G RCap® Plus
|
Hot Asphalt Applied | Polymer Modified (Rubberized) Asphalt | 105 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; CRRC Rated; Intertek Listed | Enhanced | Up to 30 years | ASTM E108 Class A |
| Torch Applied | Polymer Modified (Rubberized) Asphalt | 140 mils | ASTM D6163 Type I, Grade G; ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; FM Approved; CRRC Rated; Intertek Listed | Exceptional | Up to 30 years | ASTM E108 Class A | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | 125 mils | ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed | Enhanced | Up to 20 years | ASTM E108 Class A & B | |
| Hot Asphalt Applied | Polymer Modified (Rubberized) Asphalt | 150 mils | ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved | Exceptional | Up to 30 years | Yes |
|
524G RCap® Plus
|
||||
|---|---|---|---|---|
| Application Method |
Hot Asphalt Applied |
Torch Applied |
Self-Adhered |
Hot Asphalt Applied |
| Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
| Thickness |
105 mils |
140 mils |
125 mils |
150 mils |
| Testing Compliance |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; CRRC Rated; Intertek Listed |
ASTM D6163 Type I, Grade G; ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; FM Approved; CRRC Rated; Intertek Listed |
ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed |
ASTM D6163 Type I, Grade G; ASTM E108 Class A; Intertek CCRR-0333; Intertek Listed; FM Approved |
| Tear Strength |
Enhanced |
Exceptional |
Enhanced |
Exceptional |
| Warranties |
Up to 30 years |
Up to 30 years |
Up to 20 years |
Up to 30 years |
| Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class A |
ASTM E108 Class A & B |
Yes |
Specifications & Testing
524G RCap Plus
524G RCap Plus Label
Technical Specs
SKU: 524G
L: 33′
W: 39-3/8″
SQ/Roll: 1
Thickness: 105 mils nominal
Testing Compliance
ASTM D3909
ASTM E108 Class A
Intertek CCRR-0333
CRRC Rated
Intertek Listed
Shipping Specifications
SQ/Roll: 1
Rolls/Pallet: 30
Rolls/Truckload: 600
Documents & Resources
PDF Documents
524G RCap Plus Flyer
524G RCap Plus Safety Data Sheet
524G RCap Plus Tech Data
Multi-Ply Systems Booklet
Product Data Guide
Warranty Information
Warranty
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 524G RCap® Plus include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
