501 Paragon® MOD Base

Hot Asphalt Applied, Modified Base Sheet

Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Paragon® MOD Base is our hot asphalt applied, modified asphalt sheet for low-slope commercial roofing applications.

Product Details

System Optionality

Paragon® MOD Base is a modified asphalt sheet that can be used as either a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.

Modified Asphalt Performance

Paragon® MOD Base is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof sheet membrane.

Hot Asphalt Application

Paragon® MOD Base is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.

Modified Asphalt

Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.

Hot Asphalt

Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.

Multi-ply System

Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.

Strong & Durable

Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.

Waterproof System

Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.

Fire Resistance (FR)

Class A fire rated in a system assembly over a combustible or non-combustible deck.

Product Details

Compare Products Specifications & Testing Documents & Resources Warranty Information

	Application Method	Asphalt Technology	Tear Strength	Thickness	Testing Compliance	Warranties	Fire Resistance (FR)
501 Paragon® MOD Base	Hot Asphalt	Polymer Modified (Rubberized) Asphalt	Enhanced	55 mils	ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved	Up to 30 years	Yes
620 Paragon® ULTRA TG Base/Ply	Torch	Polymer Modified (Rubberized) Asphalt	Exceptional	100 mils	ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved	Up to 30 years	Yes
602 Paragon® ULTRA Base/Ply	Hot Asphalt	Polymer Modified (Rubberized) Asphalt	Enhanced	90 mils	ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333	Up to 30 years	Listed in various fire assemblies
410 OmniSeal® Base	Mechanically Fastened	Polymer Modified (Rubberized) Asphalt	Enhanced	50 mils	ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed	Up to 20 years	ASTM E108 Class A, B, & C

	501 Paragon® MOD Base	620 Paragon® ULTRA TG Base/Ply	602 Paragon® ULTRA Base/Ply	410 OmniSeal® Base
Application Method	Hot Asphalt	Torch	Hot Asphalt	Mechanically Fastened
Asphalt Technology	Polymer Modified (Rubberized) Asphalt	Polymer Modified (Rubberized) Asphalt	Polymer Modified (Rubberized) Asphalt	Polymer Modified (Rubberized) Asphalt
Tear Strength	Enhanced	Exceptional	Enhanced	Enhanced
Thickness	55 mils	100 mils	90 mils	50 mils
Testing Compliance	ASTM D4601 Type II; ASTM E108 Class A; Intertek CCRR-0333; UL Listed; FM Approved	ASTM D6163 Type I, Grade S; ASTM E108 Class A; Intertek CCRR-0333; FM Approved	ASTM D6163 Type I, Grade S; ASTM D4601 Type II; FM Approved; Intertek CCRR-0333	ASTM D4601 Type II; ASTM E108 Class A, B, & C; UL & Intertek Listed
Warranties	Up to 30 years	Up to 30 years	Up to 30 years	Up to 20 years
Fire Resistance (FR)	Yes	Yes	Listed in various fire assemblies	ASTM E108 Class A, B, & C

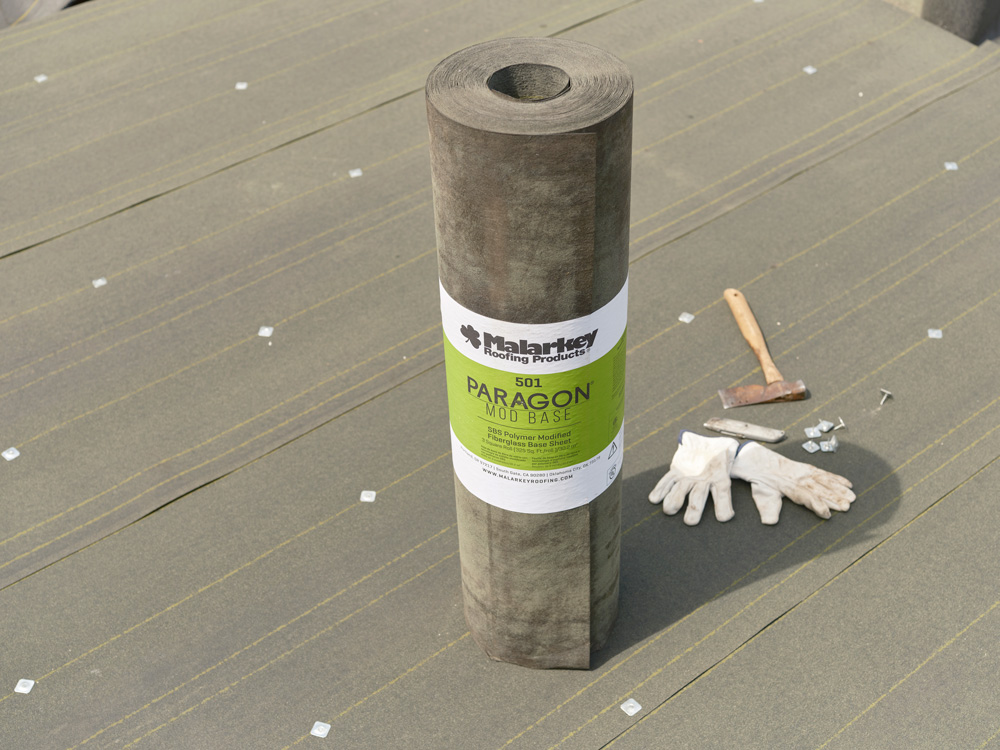

501 Paragon MOD Base

501 Paragon MOD Base Label

Technical Specs

SKU: 501
L: 99′
W: 39-3/8″
SQ/Roll: 3
Thickness: 55 mils nominal

Testing Compliance

ASTM D4601 Type II
ASTM E108 Class A
Intertek CCRR-0333
UL Listed
FM Approved

Shipping Specifications

SQ/Roll: 3
Rolls/Pallet: 20
Rolls/Truckload: 520

PDF Documents

501 Paragon MOD Base Tech Data

Multi-Ply Systems Booklet

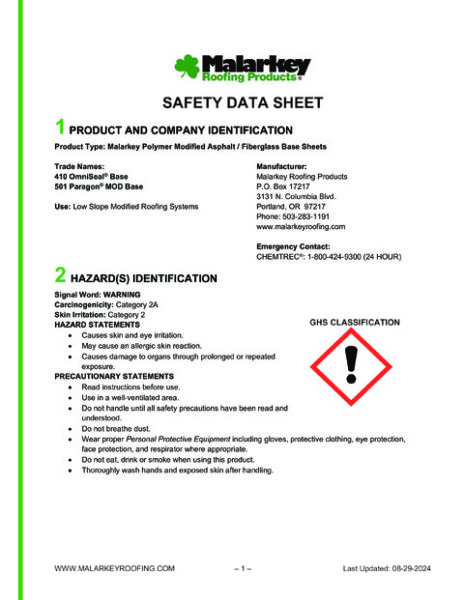

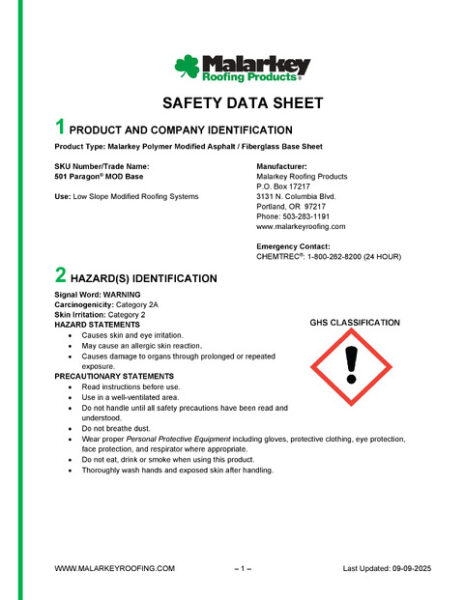

OmniSeal & Paragon Base Sheets Safety Data Sheet

Product Data Guide

Warranty

Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 501 Paragon® MOD Base include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
